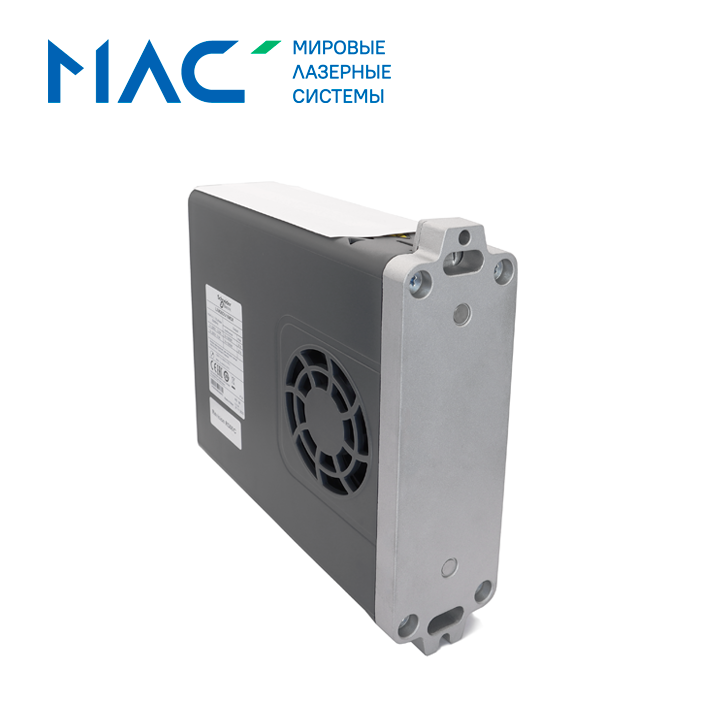

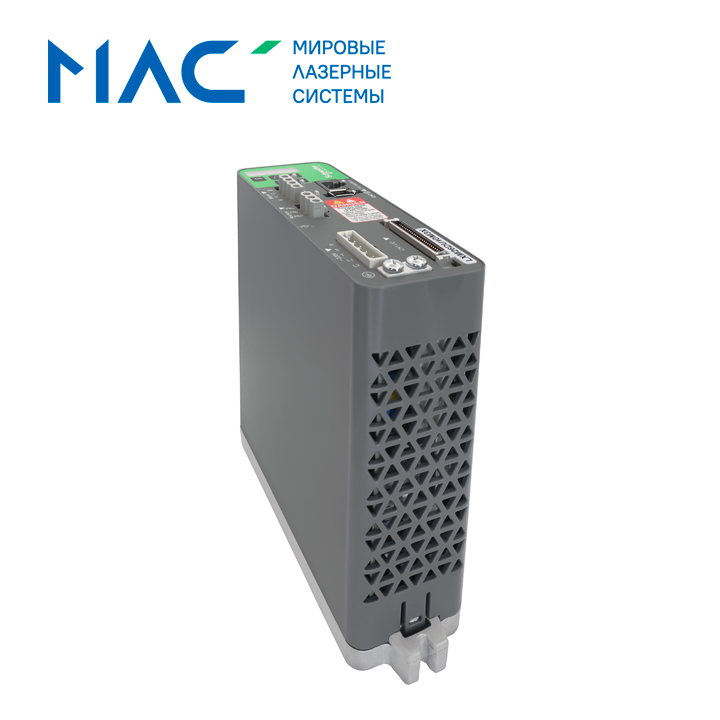

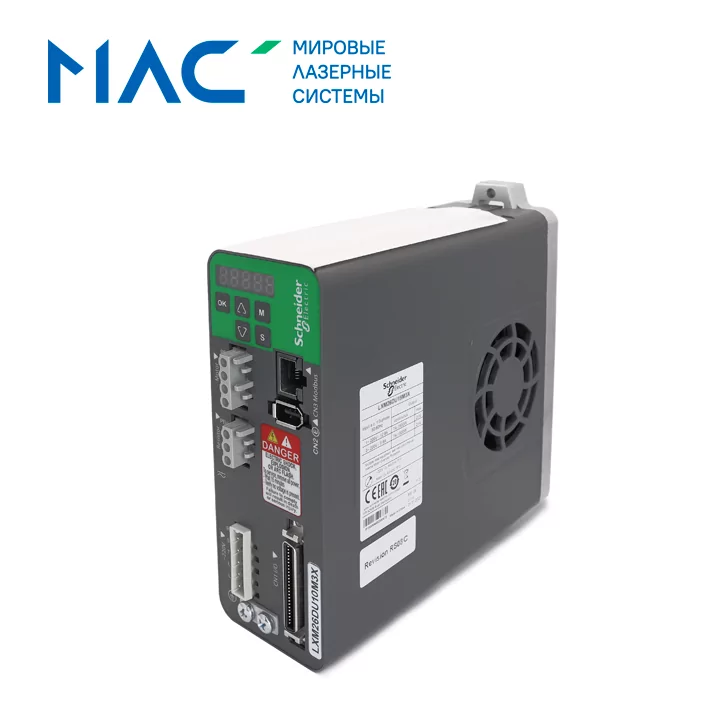

Драйвер сервопривода Schneider LXM26DU10M3X

Product Range: Light Lexicon 26
Device Short Name: LXM26D
Drive Format: Compact Housing
Product/Component Type: Motion Servo Drive

Line Current:
- 8.5 A, 176.3% at 220 V (single-phase supply)
- 8.5 A, 155.5% at 220 V (three-phase supply)

Mains Phase Count:
- Single-phase
- Three-phase

Rated Supply Voltage [Us]:
- 220 V (-10…+15%) for three-phase
- 220 V (-20…+15%) for single-phase

Supply Voltage Range:
- 200…255 V (three-phase)
- 170…255 V (single-phase)

Supply Frequency:
- 50/60 Hz ±5%
Mains Frequency:
- 47.5…63 Hz

Continuous Output Current:
- 7 A at 16 kHz
Peak Output Current (3 s):
- 21 A at 220 V

Continuous Power:
- 1000 W at 220 V
Rated Power:
- 1 kW at 220 V, 16 kHz

Switching Frequency:
- 16 kHz

Overvoltage Category:
- III
Maximum Leakage Current:
- 4.5 mA

Output Voltage:
- ≤ Supply voltage

Electrical Isolation:
- Between power and control

Cable Type:
- Twisted shielded pair cable (single or double-core, temperature: 0…55 °C)

Electrical Connection:
- Spring clamp, nominal size: 1.3…1.5 mm², AWG 16 (L1-L2)
- Spring clamp, nominal size: 1.3…1.5 mm², AWG 16 (R, S, T)
- Spring clamp, nominal size: 1.3…1.5 mm², AWG 16 (U, V, W, PE)
- Spring clamp, nominal size: 1.3…1.5 mm², AWG 16 (PA/+, PB-)

Tightening Torque:
- Polyethylene (ground): 1.4 N·m

Discrete Input Number:
- 8 programmable (CN1)
- 1 pulse train input (PTI) (CN1)
- 2 for fast capture (CN1)

Discrete Input Voltage:
- 24 V DC (logic)
Discrete Input Logic:
- Positive or negative (CN1)

Discrete Output Number:
- 1
- 5
Discrete Output Type:
- Logic output (CN1) at 12…24 V DC
- Pulse train output (PTO) (CN1)

Discrete Output Voltage:
- 12…24 V DC
Discrete Output Logic:
- Positive or negative (CN1)

Analog Input Number:
- 2
Absolute Accuracy Error:
- 0.1%
Analog Input Type:
- Voltage analog input V_REF: -10…+10 V, resistance: 10 kΩ, resolution: 12-bit
- Voltage analog input T_REF

Control Signal Type:
- Servo motor encoder feedback (CN2)

Protection Type:
- Reverse polarity protection (input signal)
- Short-circuit protection (output signal)
- Overcurrent protection (motor)
- Overvoltage protection (motor)
- Undervoltage protection (motor)
- Overtemperature protection (motor)
- Overload protection (motor)
- Overspeed protection (motor)

Physical Interface:
- RS485 for Modbus serial line slave device

Status Indicator:
- 1 red LED (charging)

Alarm Function:
- Servo drive status and fault codes via five 7-segment displays

Certifications:
- CULus
- CSA
- CE

Cooling Type:
- Built-in fan

Operating Position:
- Vertical

Product Compatibility:
- BCH2 Servo Motor (130 mm, 1 motor set)
- BCH2 Servo Motor (100 mm, 1 motor set)
- BCH2 Servo Motor (130 mm, 2 motor sets)
- BCH2 Servo Motor (130 mm, 3 motor sets)

Dimensions:
- Width: 55 mm
- Height: 150 mm
- Depth: 177 mm

Net Weight:
- 1.2 kg

Electromagnetic Filter:
- Without electromagnetic filter

Electromagnetic Compatibility (EMC):
- Conducted emission test: Level 3, Category C3 per IEC 61800-3

Standards:
- IEC 61800-5-1

Product Certifications:
- cULus
- CE
- CSA

IP Rating:
- IP20

Vibration Resistance:
- Amplitude 3M4 = 3 mm (f = 9…200 Hz) per IEC 60721-3-3

Shock Resistance:
- 10 g, Type I, per IEC 60068-2-27

Relative Humidity:
- 5…95% (non-condensing)

Ambient Operating Temperature:
- 0…55 °C

Ambient Storage Temperature:
- -25…65 °C

Operating Altitude:
- ≤ 1000 m (no derating)
- > 1000…2000 m (1% derating per 100 m)
